Retrofitting a bathroom for accessibility doesn’t mean sacrificing design. A well-planned handicap walk-in shower combines code-compliant safety features with finishes that feel modern, not institutional. Whether you’re aging in place, recovering from surgery, or planning for long-term mobility needs, the right shower configuration makes daily routines safer and more independent. This guide covers the structural, material, and fixture choices that matter, from zero-threshold entries to grab bar blocking, so you can build or remodel with confidence.

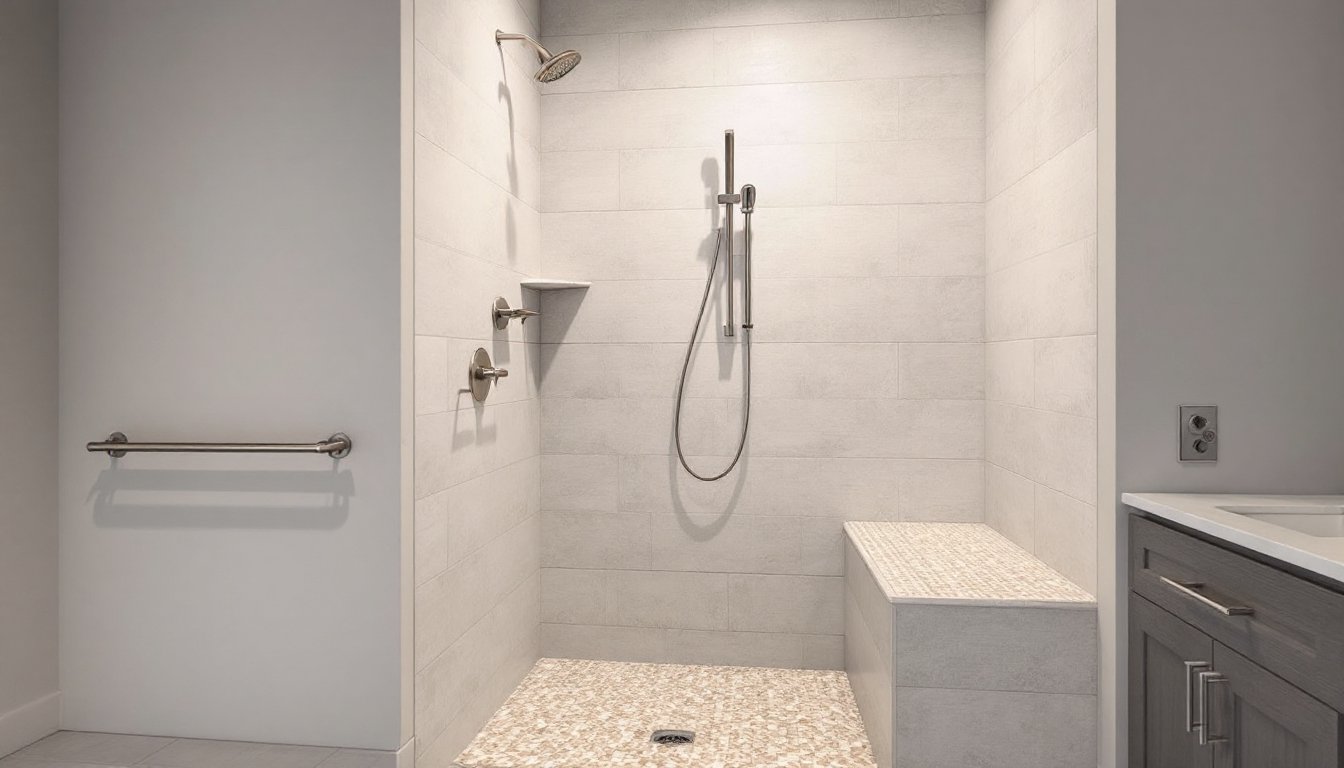

Essential Features Every Accessible Walk-In Shower Needs
ADA-compliant walk-in showers share a few non-negotiable elements, even if your jurisdiction doesn’t require a permit for the work. Start with a minimum 36″ x 36″ interior dimension, though 48″ x 36″ or larger is easier for wheelchair transfers and caregiver assistance.
The shower must include backing (blocking) for grab bars even if bars aren’t installed immediately. Use ¾” plywood or 2×6 or 2×8 blocking between studs at heights of 33″–36″ above the finished floor, running horizontally where you’ll mount bars later. This backing must extend around at least two walls.
A hand-held showerhead on a slide bar is essential. Mount the slide bar so the lowest setting is around 48″ and the highest reaches 72″ to accommodate seated or standing users.
Finally, consider a linear drain along one wall rather than a center drain. Linear drains simplify slope requirements (typically ¼” per foot toward the drain) and work better with large-format tile, reducing grout lines that can trap moisture or create uneven surfaces.
If you’re doing structural work, moving walls, altering floor joists, or adding a new drain line, check whether your municipality requires a permit and rough-in inspection before closing up walls.
Zero-Threshold and Low-Threshold Entry Options
A zero-threshold (curbless) shower sits flush with the bathroom floor, eliminating trip hazards and allowing wheelchair or walker access. It’s the gold standard for accessibility but requires careful planning.
You’ll need to lower the shower drain below the subfloor or build up the entire bathroom floor to create enough pitch. In slab foundations, this often means breaking concrete and depressing the shower area, a job best left to a licensed plumber and contractor. For homes with a crawl space or basement below, you have more flexibility to drop the drain line.
Waterproofing is critical. Use a bonded membrane system (like Schluter KERDI or RedGard) that extends at least 6″ beyond the shower perimeter. Curbless showers are essentially wet room-style bathrooms, so the entire floor should be waterproofed to prevent leaks into adjacent rooms.
Low-threshold showers (with a 2″ or shorter curb) are a compromise when zero-threshold isn’t feasible. They still reduce tripping risk and may allow a rolling shower chair to pass with a small ramp. Prefabricated low-threshold bases are available in acrylic and solid-surface materials, simplifying installation compared to custom tile pans.
Either way, ensure the slope is gradual enough that water doesn’t pool but steep enough to drain fully, 1:50 (about ¼” per foot) is typical.
Slip-Resistant Flooring and Surface Materials
Slip resistance is measured by Dynamic Coefficient of Friction (DCOF). The Tile Council of North America recommends a wet DCOF of 0.42 or higher for level surfaces, and 0.60 or higher for ramps.
Small-format tiles, 1″ x 1″ to 2″ x 2″ mosaics, offer more grout lines, which increase traction. Porcelain and ceramic tiles rated for wet areas are durable and easy to clean. Look for tiles labeled “slip-resistant” or “textured.”
Pebble tile is another option. Natural river stones bonded to mesh sheets create an organic, textured surface with excellent grip, though grout maintenance is higher.
For a seamless look, consider non-slip epoxy coatings or roll-on textured membranes applied over concrete or existing tile. These work well in retrofit scenarios where removing old tile isn’t practical.
Avoid polished marble, glass tile, and glossy ceramic on floors, they’re beautiful but dangerously slick when wet, even with texture.
If using large-format tile (12″ x 24″ or bigger), choose a matte or honed finish and apply an anti-slip treatment. Some installers add a fine silica grit to grout for extra traction, though this can make cleaning harder.
Grab Bar Placement and Installation Tips
ADA guidelines specify grab bar locations, but real-world use varies by individual needs. At minimum, install a horizontal bar 33″–36″ above the floor on the side wall, running 42″ in length. A second horizontal bar on the back wall, also 33″–36″ high, helps with seated transfers.
A vertical bar near the shower entrance (typically 48″ high, mounted 3″–6″ from the corner) assists with entry and standing balance.
Grab bars must withstand 250 lbs of force in any direction. That means fastening to solid blocking, not drywall or tile alone. Use #10 or #12 stainless steel screws, at least 1.5″ into the backing. Avoid toggle bolts or drywall anchors, they aren’t rated for the load.
Diameter matters: bars should be 1.25″ to 1.5″ in diameter for a secure grip. Textured or knurled finishes improve traction when hands are wet or soapy.
Many homeowners opt for decorative grab bars in brushed nickel, oil-rubbed bronze, or matte black to match other fixtures. These are ADA-compliant if they meet diameter and mounting standards, just confirm weight rating and avoid towel-bar lookalikes that can’t handle load.
If you’re unsure of backing location behind finished walls, a stud finder with deep-scan mode or a small inspection camera can help locate blocking before drilling.
Built-In Seating and Bench Design Ideas
A built-in shower seat provides stability for users who can’t stand for extended periods. ADA-compliant seats measure 17″–19″ high (standard toilet height) and 15″ deep minimum, with a width of at least 24″.
You can frame a seat using 2×4 or 2×6 lumber and ¾” plywood, then waterproof and tile over it. The structure must be reinforced to support at least 250 lbs. Fasten framing to wall studs and, if possible, to blocking in the floor.
Fold-down seats save space in smaller showers. Wall-mounted models hinge up when not in use and lock in place when lowered. Verify weight capacity, cheaper units may only support 150 lbs.
Teak benches are a popular upgrade. Teak resists rot and feels warm underfoot, but it requires periodic oiling and costs more than tile. Prefabricated teak inserts drop into tiled niches for a spa-like look.
For custom tile seats, use slip-resistant tile on the seat surface, not just the floor. A slight forward slope (about ⅛” per foot) helps water drain off the seat instead of pooling.
Corner seats maximize space in square or neo-angle showers. L-shaped or wraparound benches work well in larger walk-ins, offering multiple seating positions and a place to rest a leg during shaving or foot care.
Handheld Showerhead and Control Accessibility
A hand-held showerhead on a slide bar is non-negotiable for accessible showers. The slide bar should run vertically from about 48″ to 72″ above the floor, allowing users to adjust height without tools.
Look for models with a 60″ or longer hose for seated use. Stainless steel braided hoses last longer than plastic and resist kinking.
Thermostatic mixing valves prevent scalding by maintaining a preset water temperature, even if someone flushes a toilet elsewhere in the house. These valves are required by code in many jurisdictions for accessible bathrooms and worth the investment even if not mandated.
Mount the shower valve and controls 38″–48″ above the floor, reachable from a seated position and outside the direct spray path. Side-wall mounting is preferable to back-wall mounting for wheelchair users.
Lever-style or push-button controls are easier to operate than twist knobs, especially for users with arthritis or limited hand strength. Some models include digital displays showing exact temperature, helpful for those with reduced sensation.
Consider a diverter valve if you want both a fixed rainfall showerhead and a hand-held unit. Users can switch between them or run both simultaneously. Just confirm your water heater and pressure can support dual flow: most homes need at least 2.5 GPM total flow to avoid weak spray.
For renovation cost planning, many homeowners find that accessible shower upgrades range widely depending on scope, research typical remodeling costs for your area before finalizing a budget.
Conclusion
An accessible walk-in shower is one of the highest-return investments in home safety and resale value. Prioritize structural blocking, waterproofing, and slip-resistant surfaces during construction, retrofitting these later is expensive and disruptive. If plumbing or structural changes are involved, get estimates from licensed contractors through resources like HomeAdvisor to compare local pricing. With the right planning, your shower can meet ADA guidelines without looking clinical, blending safety features into a design you’ll appreciate for decades.
